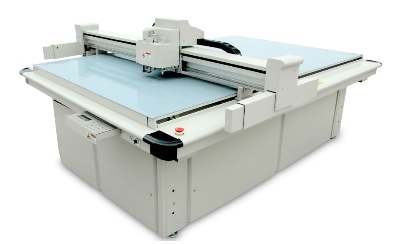

Box Sampler Machine | Plotting and Cutting Machine

The machine is solution for plotting and cutting for making samples of clothing, box, carton, etc. The tools are spring plotting pen, special cutting knife,Creasing tool, Laser mark light. It can cut corrugated board, chipboard, foam board, plastic board, thin wood board, leather, cloth etc. It can make samples or small production for packaging company, corrugated box manufacturer, color box manufacturer, color printing manufacturer, die cutting manufacturer and advertising company.

TYPE	HP-FC-25T	HP-FC-17T		HP-FC-13T
Effective cutting area	2500*1600mm	1700*1300mm		1300*1000mm
Configuration	Oscillating blade, pen, creasing wheel, drag knife
Speed	0-1000mm/s
Smallest cutting diameter	6mm
Maximum cutting thickness	30mm
Control line and driver	servo
precision	≤0.1mm
Vacuum	5.5kw
Data form	HPGL,DXF, FDF
Voltage	220v±10% 50Hz
Data port	Parallel port, Serial Port, USB port,
Data Transmission speed	10MB/s
Input cushion area	32MB
Machine Dimensions	3400*2500*1200mm		2600*2500*1200mm		2200*1900*1200mm
