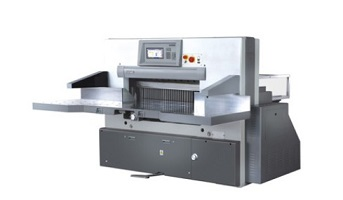

Paper Guillotine | Paper Cutter

We can also supply the Paper Guillotine Line, now let me introduce our paper guillotine main features:
1. Taiwan brand Ball lead screw and linear guide-rail makes paper impeller run smooth,low noise,accurate positioning,enhance the cutting precision and speed greatly,prolong the service lift of paper cutter.
2. The working tables are all chrome-plated and equipped with air balls which makes paper-pushing easily and rusty-proof.Large side workingtable(1000*800) is optional.
3. IR photoelectric protection,buttons by two hands safety devices.
4. Safety device for knife bed, overloading protection for cutting,automatic return safety device.
5. Imported hydraulic components are adopted in hydraulic system,the pressure can be adjusted.The paper is pressed twice by pressure-increased system.
6. Mechanical assistance device for knife replacement makes knife replaced quickly and safely.
7. Equipped with the optical knife alignment to make cutting more convenient.
8. PLC control system.
9. Ejecting device for knife bar.
10. Flat worm speed reducer transmission.
11. Inside electronic knife locker to make the cutting more safety and stable.
12. Multination langueage operation interface.
13. Carry on the block programming operation through the figures and diagrams operation manual.

Model: HP-PG	G-78	G-92	G-115	G-130	G-137	G-155	G-166	G-186
Display	Touch screen	Touch screen	Touch screen	Touch screen	Touch screen	Touch screen	Touch screen	Touch screen
Cut Width Max.	78cm	92cm	115cm	130cm	137cm	155cm	166cm	186cm
Max. Cutting depth	78cm	92cm	115cm	130cm	145cm	155cm	166cm	195cm
Cutting speed	45 times/min	45 times/min	45 times/min	45 times/min	45 times/min	42times/min	42 times/min	40 times/min
Max. Paper Pressure	3000N	3500N	4000N	4000N	4500N	5500N	6000N	6500N
Power of Main motor	3kw	3kw	4kw	4kw	5.5kw	5.5kw	5.5kw	7.5kw
Power of paper feeding motor	0.37kw	0.37kw	0.55kw	0.55kw	0.55kw	0.75kw	0.75kw	0.75kw
Power of air pump	0.55kw	0.55kw	0.75kw	0.75kw	0.75kw	0.75kwX2	0.75kwX2	0.75kwX2
Machine weight	2600kg	2900kg	4600kg	3900kg	4500kg	5000kg	5500kg	6600kg
Package dimension	210x140x195cm	225x140x195cm	255x160x215cm	260x155x195cm	280x160x215cm	296x165x215cm	315x160x215cm	340x182x230cm
