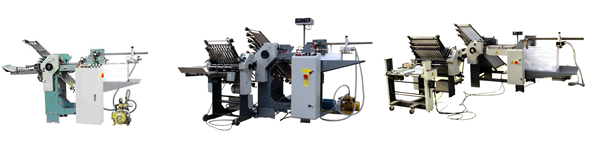

Paper Folding Machine | Paper Folder
Buckles/combs and knife cooperation for paper folding procedures. The machines can do nearly all kinds of folding work.
Model |
HP-PF360 |
HP-PF470 |
HP-PF520 |
HP-PF660 |
Max Sheet size |
360*750mm |
470*750mm |
520*750mm |
660*1040mm |
Min Sheet Size |
50*100mm |
100*200mm |
130*100mm |
150*200mm |
Sheet Range(paper gsm) |
40-157gsm |
40-157gsm |
40-180gsm |
40-180gsm |
Max Folding roller speed |
180m/min |
180m/min |
180m/min |
180m/min |
Max Folding knife cycle rate |
200 times/min |
200 times/min |
200 times/min |
200 times/min |
Paper Pile height |
500mm |
500mm |
500mm |
500mm |
Machine Power Total |
3kw |
3.7kw |
3.7kw |
5.5kw |
Machine Weight |
750kg |
780kg |
750kg |
2200kg |
Machine Dimension |
2.8*1.0*1.4m |
3.5*1.1*1.4m |
2.4*1.5*1.4m |
3.8*1.5*1.6m |
