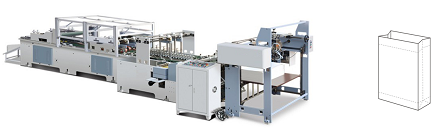

Paper Bag Tube Making Machine

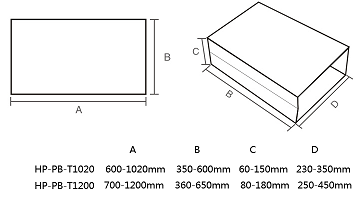

Tube Making Dimensions

The machine is semi-automatic solution for sheet paper into paper bags. The first step is make bag tube and next step is gluing and folding paper bag bottom. The working Process including Paper automatic feeding,paper registration, gluing, tube forming, bottom folding process, collection.

Model

HP-PB-T1020

HP-PB-T1200

Sheet Paper Size Max

1020x600mm

1200x650mm

Sheet Paper Size Min

600x350mm

700x360mm

Paper Weight

150-350gsm

100-300gsm

Speed

50-70bags/min

60-90 bags/min

Power Total

6.5kw

14kw

Dimensions

8100x2000x1800mm

1430x2400x1800mm

Machine Weight

4ton

12ton

Glue Type

Hot Melt

Hot melt
