Thermal Laminating Machine | Thermal Laminator|Manual Laminating Machine

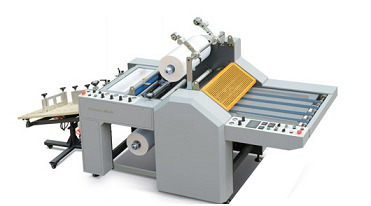

Manual Thermal Laminating Machine
The machine is most economical, space saving and user-friendly ;
Feeding Unit by manually;
PLC control, buttons operation panel board;
Hydraulic Press system is suitable for Thermal film as well as glueless film;
Pneumatic air shaft used for film unwinding;
Oil heating system, PID, fast and efficient performance;
Economical Collection, Vibration Joger is optional.


Model

HP-FM-52

HP-FM-68

HP-FM-88

HP-FM-104

Max laminating Width

520mm

680mm

880mm

1040mm

Max laminating Speed

0-25m/min

0-25m/min

0-25m/min

0-25m/min

Laminating temprature

≤130℃

≤130℃

≤130℃

≤130℃

Power

15kw

13kw

15kw

16kw

Total Weight

1400kg

1600kg

1800kg

2000kg

Overall Dimensions

3300*1150*1400mm

4000*1500*1600mm

4200*1700*1600mm

4000*1900*1600mm
