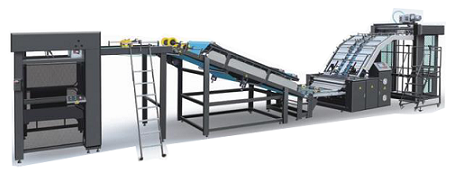

Fully Automatic Flute Laminator
The machine is professional automation solution for cardboard to cardboard, cardboard to corrugated board lamination. Automatic feeding for surface sheet and bottom sheet. Automatic delivery part with non-stop delivery function.
Model |
HP-FFL-1300 |
HP-FFL-1480 |
HP-FFL-1650 |
Flute Laminating size Max |
1300×1100mm |
1480×1300mm |
1650×1300mm |
Flute Laminating size Min |
400x400mm |
400x400mm |
400x400mm |
Thickness Max |
8mm |
8mm |
8mm |
Laminating Speed |
130m/min |
130m/min |
130m/min |
Surface Sheet |
Cardboard Paper 200-450gsm |
|
|
Bottom Sheet |
A/B/D/C/E/F Corrugated Board, Cardboard Paper ≥400gsm |
||
Flute Laminating Accuracy |
±1.5mm |
±1.5mm |
±1.5mm |
Total Power |
18.5kw |
20.5kw |
26kw |
Overall Dimensions |
18850×2250×2960mm |
18850×2400×2960mm |
19100×2600×2960mm |
Weight |
8.5T |
9.5T |
10.5T |
