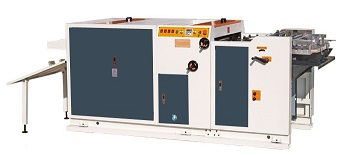

UV Varnishing Machine | UV coater

Feeding Unit by vacuum suction and start-from-top method.
Easy Removable rollers for convenient maintenance.
Conveyor belt action with good synchronization.
UV lamps and IR lamps work for different purposes.
Collection table can upgrade to Jogger collection

Max Paper Application	470Χ370mm	650Χ450mm
Min Paper Application	150Χ180mm	150Χ180mm
Paper weight	157-600g/m2
Work Speed	3000-4500sheet/h
Power Total	9.5KW	11.1KW
Voltage	3phases 380V/220V	3phases 380V/220V
Machine Weight	750KG	850KG
Overall Dimensions	3100Χ820Χ1130mm	3200Χ1100Χ1130mm
