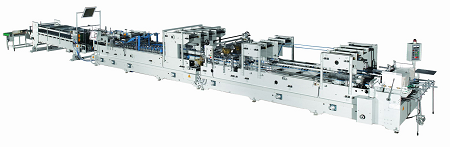

Automatic Folder Gluer | 4/6 Corners Box Making Machine
The machine is professional automation solution for box making with material such as Cardboard, E/F/G-flute corrugated board. The work process includes automatic feeding, pre-folding, side and bottom gluing, second folding, pressing, counting, collection and delivery.
Box Material |
Cardboard，Card +card board, E-flute corrugated board |
Box Width |
650/800/1100/1250/1450 mm |
Gluing Style |
Both Sides Gluing, Bottom Gluing |
Gluing Speed |
MAX. 300M/min |
Glue |
Emulsion, soluble in water |
Feeding |
Automatic Accurate Serial Feeding |
Pre-folding |
No.1 crease line 180°，No.3 crease line 135° |
Power |
11KW，AC380V |
Dimension |
L13.4m*W2.10m*H2.0m |
Weight |
8000kg |
