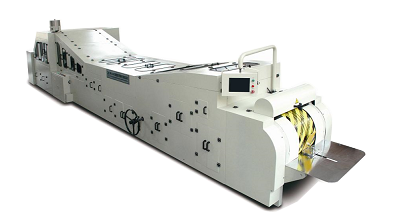

Automatic Food Bag Making Machine | Fast Food Bag Maker



The machine is automatic solution for for bread bags, air food bags, fast food bags such as KFC and Mcdonald's food bags. The machine works process including hydraulic mill paper feeding, side gluing, tube making, cut-off, bottom creasing, bottom gluing, bottom shaping, collection and delivery. The machine is equipped with PLC control, Servo motors, photocell inspection and Color-Marking Tracking.

Paper Roll Width	410-990mm
Unwind Dia Max	1500MM
Paper Weight	70-150gsm
Roll Core Dia	76mm
Bag Length	280-600mm
Bag Bottom	70-150mm
Paper Bag Width	120-330mm
Paper Bag Side width	20-100mm
Speed	80-210bags/min
Power Total	13kw
Machine Weight	10 ton
Dimensions	12500×2100×2000mm
