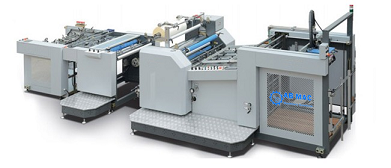

Automatic Thermal Laminating Machine | Double Side Laminator |Thermal Laminator

Feeding Unit by vacuum suction and start-from-top method by Oil-free vacuum pump;
Touch Screen Interface, for easy operation;PLC control ;
Hydraulic Press system is suitable for Thermal film as well as glueless film;
Pneumatic air shaft used for film unwinding;
Oil heating system, fast and efficient performance;
Automatic Collection, Vibration Joger is optional.

Model No.	HP-FLD-1020
Max Paper Size	800*1020mm
Min Paper Size	300*300mm
Laminating Speed	0-50m/min 0-35m/min
Paper Thickness	100-500gsm
Gross Power	36.5kw
Overall Dimensions	6200*1650*1900mm
