Hardcover Making machine| Book Case Maker

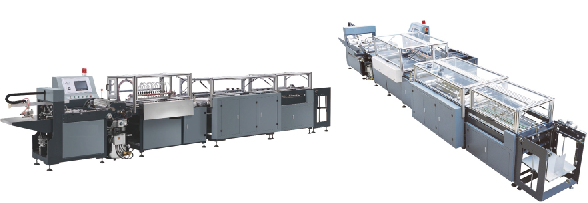

Automatic Book Case Making Machine

The machine is automatic solution for Hard book cover or book caser, the machine features:
1. The paper feeding unit are using back-push and air-blow feeding system;
2. The registration for cardboard can make best positioning on the cover sheet;
3. The air draft device can avoid powdery paper bend and air bubble;
4. The delivery table is an automation lifting table;
5. Intelligent touch screen display and user-friendly operation;
6. OMRON/Delta PLC intelligence software control system, automatic checking trouble.

Model

HP-HCM-480

Length of paper

230-830MM

Width of paper

140-480MM

Thickness of paper

100-200g

Thickness of cardboard

1-3mm

Working Speed

0-25sheets/min.

Dimension

L7600XW2150XH1500mm

Power supply

18kw

Weight

2500kg
