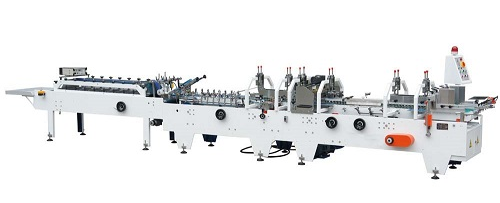

Automatic Folder Gluer | 4/6 Corners Box Making Machine
The machine is automation solution for box making with material such as Cardboard, E/F/G flute corrugated board. The work process includes automatic feeding, side and bottom gluing, second folding, pressing, counting, collection. The machine is suitable for side-gluing box, or lock bottom box.
Types of paper box |
Linear paper box |
Bottom lock paper box |
Picture |
|
|
Size L (mm) |
120-500 |
120-500 |
Size W (mm) |
80-580 |
150-580 |
Size F (mm) |
6-15 |
6-15 |
Size C (mm) |
40-280 |
70-280 |
Material |
cardboard, E flute corrugated board |
Max speed |
200m/min or 40000-50000pcs/hour |
Type |
Standard box, Double sides box (optional) |
Power |
5kw/AC380v/50Hz |
Weight |
2600kg |
Machine dimension |
7600×1400×1400mm |
