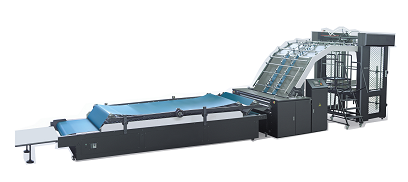

Automatic Flute Laminator
The machine is automation solution for cardboard to cardboard, cardboard to corrugated board lamination. Automatic feeding for surface sheet and bottom sheet. Integrated control by PLC, standard board collection and delivery system.
Model |
HP-FL-1300 |
HP-FL-1450 |
HP-FL-1650 |
sheet size Max |
1300×1100mm |
1450×1100mm |
1650×1650mm |
sheet size Min |
400×400mm |
400×400mm |
400×400mm |
Power total |
15kw |
15kw |
22kw |
Surface board Request |
200-450gsm |
200-450gsm |
200-450gsm |
Laminating Precision |
±1.5 |
±1.5 |
±1.5 |
Speed Max |
5500sph |
5500sph |
5500sph |
Machine Weight |
5.8t |
6.2t |
6.5t |
Dimension |
12760×2200×2560mm |
12760×2400×2560mm |
13500×2600×3000mm |
