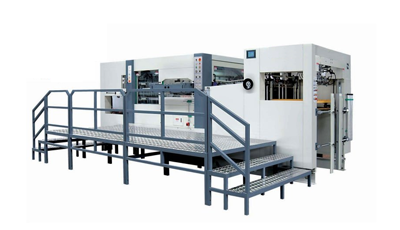

Automatic Die Cutting Machine

Automatic die cutting and creasing machine with stripping function is one key equipment in the boxes/cartons processing:
PLC programmable logic controller centralized control;
Frequency converter control, stepless speed regulation;
Excellent performance, precision accuracy and long service life;
Safety protect the machines work and personal safety.

Model: HP-D&C-1050S



Max Paper Size	1050mmx750mm
Min Paper Size	400mmx360mm
Max Cut size	1040mm×730mm
Cut Pressure Max	300tons
Cardboard thickness	800-2000g/m2
Corrugated paper thickness	≤4mm
Gripper Margin	9.5mm
Max machine speed	7500sheets/hour
Total power	23KW
Inner size of chase	1145mm×755mm
Size of steel plate	1080mm×736mm
Measurement((L×W×H)	7015mm×4200mm×2400mm
Total weight	16tons
