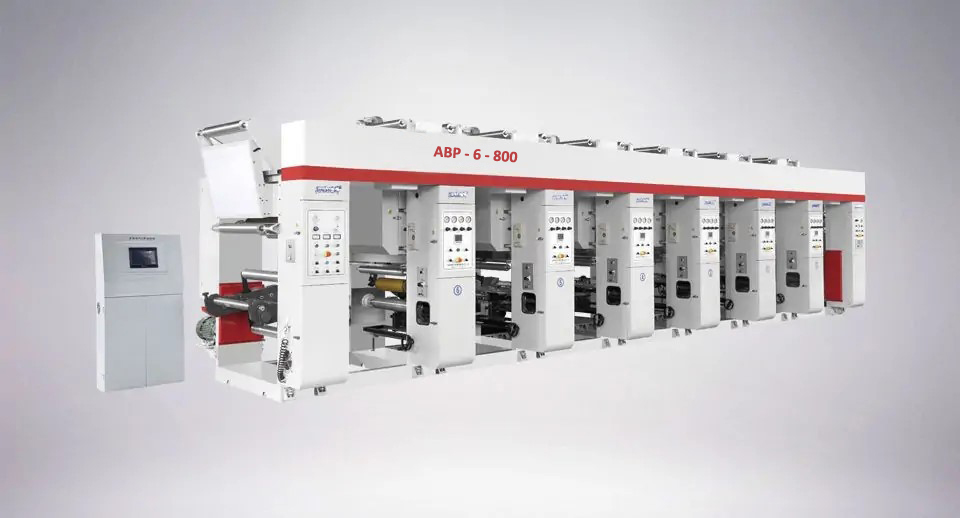

Mid Speed Gravure Printing Machine

Main features:

1. The rewinding and unwinding rolls adopt double-station electric reversing structure;

2. Oven: The upper fan and the lower fan are connected. The exhaust fan is a centrifugal large fan. (Small oven is attached)

3. The printing press roller adopts double cylinder imprinting, and the electromagnetic valve is used to control the lifting and lowering of the pressing roller.

4. Heavy-duty stable pneumatic ink holder: The scraper can adjust the up and down and angle at will, and the synchronous movement is used for lateral movement.

5. Loading mode: gas top without shaft mounting version. Pair version: gear box clutch pneumatic version

6. Color system: computer vertical automatic color (optional with still picture), computer optional Kesai or Pusai

7. Printing guide roller diameter 80mm, key part diameter 90mm, guide roller: Taiwan-made Shanghai production guide roller, aluminum alloy through dynamic and static balance treatment

8. The whole machine integrated wall panel. Winding 2 sets of torque motors, unwinding 2 (5 kg magnetic powder)

9. Receiving and discharging traction tension and main motor adopt Japanese Yaskawa inverter vector control, ultra-low friction cylinder: Japan Tengcang (2)

10. Three motors: Siemens in Germany 11. Inverter: Yaskawa, Japan

Printing material

1. Polypropylene film OPP/BOPP/CPP12-60 micron 5. Polyvinyl chloride film PVC/PO/PVDC 20-70 micron

2, polyester film PET 12-60 microns 6, combined layer film 150g/m3

3. Nylon film PA 15-60 micron 7. Combination laminated film 150g/m3

4, cellophane CELLOPHANE 20-30 microns 8, polyethylene film PE 30-100 microns

Plate diameter	100-300mm	100-300mm	100-300mm	100-300mm
Maximum print width	600mm	800mm	1000mm	1200mm
Rewinding diameter	600mm	600mm	600mm	600mm
Printing speed	80-130m/min	80-130m/min	80-130m/min	80-130m/min
Overprint accuracy	≤0.10mm	≤0.10mm	≤0.10mm	≤0.10mm
Drying method	Electric heating (or steam or oil)	Electric heating (or steam or oil)	Electric heating (or steam or oil)	Electric heating (or steam or oil)
Total power	88kw	94kw	100kw	126kw
G.Weight	14000KG	15000KG	16000KG	17000KG
Dimension(LWH)	1380024002880mm	1380026002880mm	1380028002880mm	1380029002880mm
