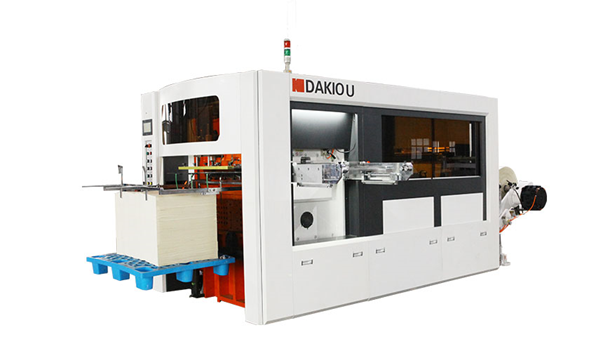

Our AB-950/1100/1200/1300 is an ideal and professional machine. It has in die-cutting，creasing，embossing and full-stripping various PE coated paper, normal paper, corrugating paper and plastic material.
It applies to paper cup, paper box, medical package, wine bottle package, food package and other environmental protection products.
What’s more, it adopts micro-computer, HMI, servo positioning, alternating current frequency converter, automatic counting, photoelectric rectifying, and pneumatic lock cutting plate, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing.
All of these are the guarantee of steady pressure, precise positioning, smooth running, safety and reliability operation.
Besides, with the international trend of plastic restriction, we also provide more and more environmentally friendly products. In order to protect the environment, to contribute our own small force.
Specifications
Type
AB-950
AB-1200
Paper Convey Width
400-950mm
400-1200mm
Max Roll paper diameter
1800mm
1800mm
Cut Precision
± 0.10mm
± 0.10mm
Production capacity
150-200 times / minute
150-200 times / minute
Maximum cutting size
950 x540 mm
1200 x640 mm
Applicable materials
100-800g / ㎡white cardboard, PE coated paper, kraft paper. and many more
100-800g /㎡ white cardboard, PE coated paper, kraft paper. and many more
Max pressure
350 tons
350 tons
power
14.5 kW
14.5 kW
We can use the Die-cutting paper to produce paper boxes, cups and bowls, etc. Click the following links to get more related and helpful products information：
