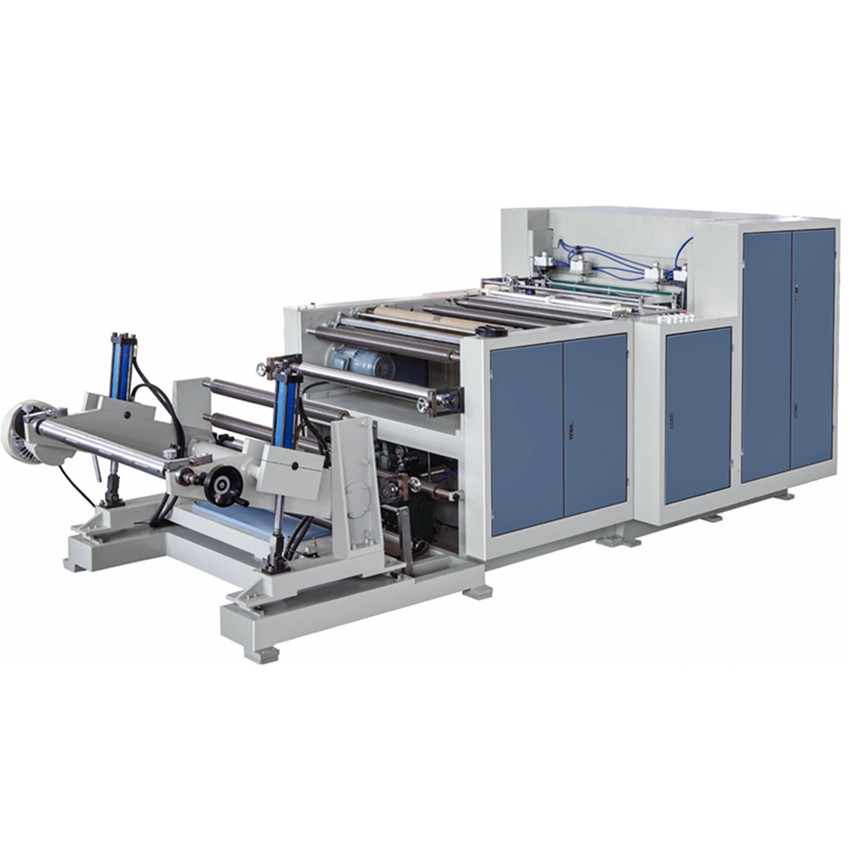

Our AB-MQ-930 high speed automatic reel paper die cutting machine is the professional equipment. We use it for cutting various kind of popular paper and PE coated paper. What’s more, it‘s also applicable to printing, packaging, paper cup and other die-cutting area.
The machine is suitable for die cutting printed and unprinted paper roll, with touch screen and PLC control. You can die cut by setting following color marks on printed roll or cutting by setting cutting length for unprinted paper roll.
Clutch is pneumatic clutch, fast and reliable.
Besides, with the international trend of plastic restriction, we also provide more and more environmentally friendly products. In order to protect the environment, to contribute our own small force.
| Specifications | |
| Model | AB- MQ-930 |
| Power | 7.5kw |
| Weight | 8000kg |
| Press mark max area | 930*500 |
| Press cut line length | <250mm |
| Speed | 80-120 time/min |
| Applicable paper | 150-450 g/m² |
| Air source | 1.0m³/min;0.8Mpa customer-owned |
| Packing Dimensions | 4550*2100*1700mm |
We can use the Die-cutting paper to produce paper boxes, cups and bowls, etc.
